How to select the right fasteners for strength, efficiency, and performance in HVAC manufacturing and sheet metal applications.
In the world of HVAC system manufacturing and sheet metal fabrication, fasteners play a vital yet often underappreciated role. From mounting condenser units to assembling ductwork, choosing the correct fastening solution can have a direct impact on equipment performance, energy efficiency, noise levels, and long-term reliability.
This guide explores common challenges, fastener options, and engineering considerations for fabricators and OEMs working in HVAC and related sheet metal applications.
Why Fastener Selection Matters in HVAC Systems
HVAC equipment must endure a wide range of environmental and operational stresses:
- Vibration from compressors, fans, and motors
- Thermal cycling from temperature fluctuations
- Exposure to moisture, chemicals, and outdoor elements
- Noise control requirements
- Regulatory standards for fire, safety, and accessibility
Incorrect or inadequate fastening can lead to premature wear, noise issues, equipment failure, or costly service calls. Selecting the right fasteners for the environment and function is essential.
Common Applications in HVAC Fabrication
- Sheet metal ducts, elbows, and transitions
- Air handling units (AHUs) and fan housings

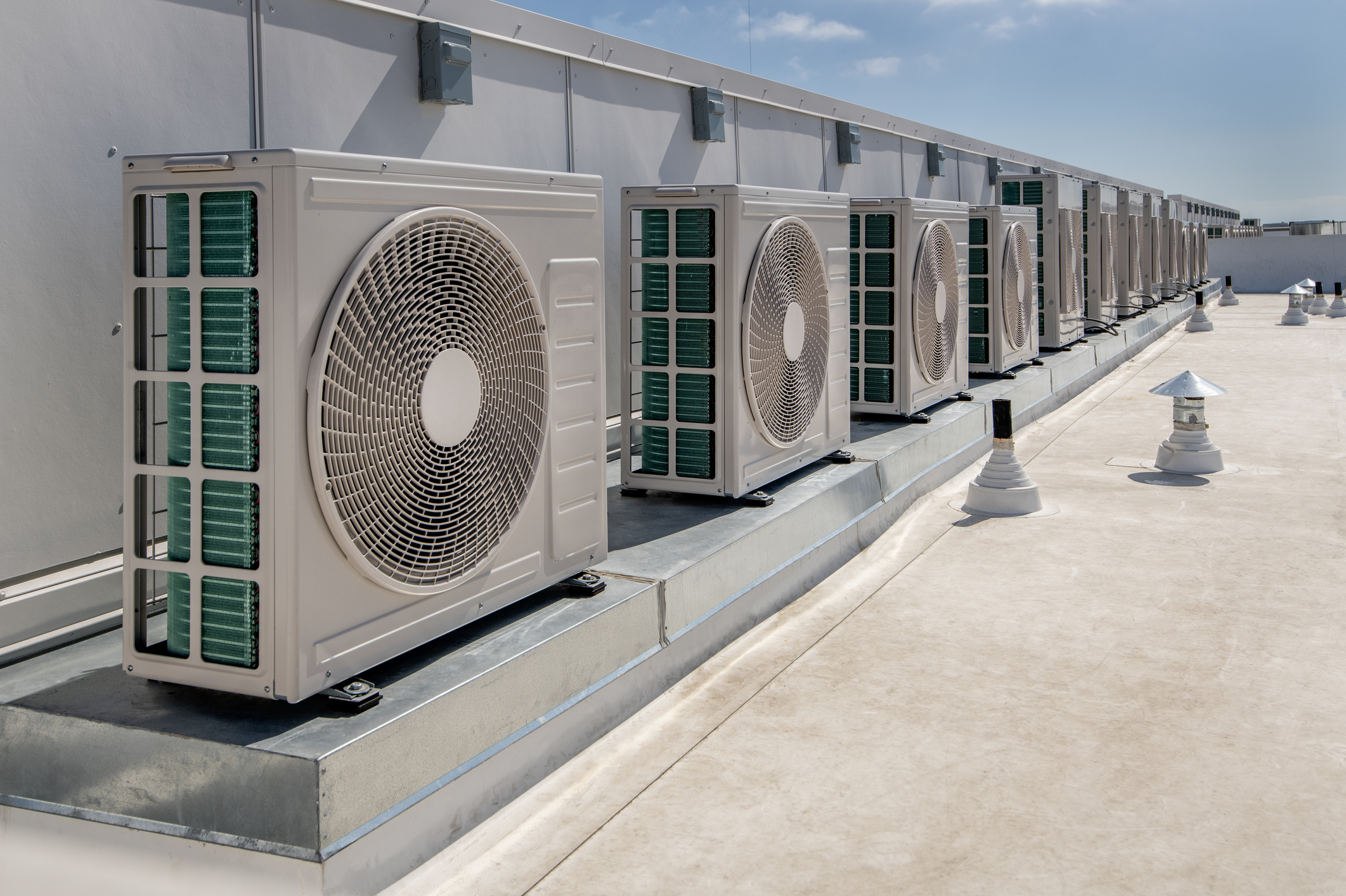

- Rooftop units and base frames
- Refrigeration and condenser coils
- Access panels and service doors
- Mounting brackets and supports
- Insulated panel assemblies
- Equipment skids and structural frames
Each of these applications presents different mechanical loads, access limitations, and material compatibility needs.
Fastener Types Commonly Used in HVAC and Sheet Metal
1. Self-Drilling Screws
These combine a drill bit and thread in one fastener, allowing them to drill and tap their own hole. They’re ideal for quickly joining thin sheet metal and are often used in duct assembly and framing applications.
- Head styles: Hex washer, pan, or truss heads
- Coatings: Zinc-plated, ceramic-coated, or stainless steel for corrosion protection
- Advantages: Eliminates need for pilot holes, reduces installation time
2. Blind Rivets
Often used when access to the back side of a joint is limited or impossible, blind rivets create a permanent mechanical bond and are ideal for lightweight aluminum panels and thin-gauge sheet.
- Options: Standard, sealed, multi-grip, structural
- Considerations: Not removable, requires specialized tooling
3. Clinching Fasteners and PEM®-Style Inserts
These fasteners are pressed into sheet metal to create strong, reusable threads without welding. They’re commonly used in HVAC access panels, electronic enclosures, and control boxes.
- Benefits: Secure thread in thin metal, clean aesthetic, fewer loose components
- Materials: Steel, stainless, and aluminum variants available
4. Thread-Forming Screws for Metal
These screws create their own threads without cutting or damaging the material, reducing the risk of strip-out and increasing joint strength.
- Best for: Ductwork, panel assembly, and fastening into stainless or coated steel
- Types: Type 1, Type 23, and trilobular styles
5. Vibration-Resistant Nuts and Locking Hardware
In HVAC systems with moving components, vibration can loosen standard fasteners. Specialized locknuts, serrated washers, and prevailing torque nuts help prevent loosening over time.
- Applications: Motor mounts, fan housings, refrigeration assemblies
6. Corrosion-Resistant Fasteners
Outdoor HVAC units and systems exposed to condensation or chemicals require corrosion-resistant fasteners. Stainless steel (304 or 316), galvanized, and ceramic-coated options are common.
- Use case: Coastal regions, rooftops, industrial facilities
Key Engineering Considerations
When selecting fasteners for HVAC or sheet metal applications, consider the following:
Material Compatibility
Fasteners should match or complement the base material to prevent galvanic corrosion. For example, use stainless steel fasteners with stainless steel panels.
Fire and Safety Standards
Fasteners used in HVAC systems may need to meet UL or NFPA codes depending on the application, particularly in ducting or fire-rated assemblies.
Installation Efficiency
High-volume manufacturers often prioritize installation speed. Fasteners that require fewer tools, have self-aligning properties, or are pre-packaged in kits can improve productivity.
Serviceability
For access panels and parts that require frequent inspection or maintenance, consider reusable fasteners like machine screws with captive nuts or quarter-turn latches.
Thermal Expansion
In systems that experience temperature cycling, use fasteners that allow for expansion without distortion or joint fatigue.
In HVAC equipment and sheet metal fabrication, fasteners serve both mechanical and functional roles. From structural support to ease of maintenance, the right fastener selection improves durability, reduces service calls, and ensures code compliance.
By understanding the application requirements and available fastening options, engineers and procurement teams can choose solutions that enhance assembly efficiency and deliver long-term performance under tough environmental conditions.
